Home > Materials > Metal-organic sensitizing dyes

Metal-organic sensitizing dyes

Since the Nature paper by O'Regan and Grätzel in 1991, Ru-based dyes have been the backbone of the dye-sensitized solar cell (DSSC) technology. Dyenamo offers six different Ru-based DSSC dyes known under the codes K77 (DN-FR01), B11 (DN-FR02), N749 (DN-FR03, Black dye), C101 (DN-FR04), N719 (DN-EVF05) and Z907 (DN-EVF06).




DN-FR-Series

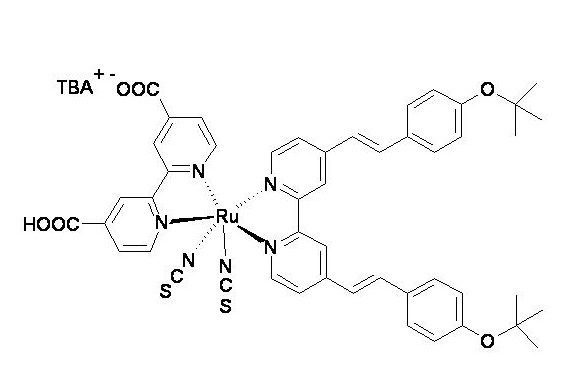

DN-FR01

K77





dye_k77
Full name:
Ru(2,2´–bipyridine-4,4´-dicarboxylic acid)(4,4´-bis(2-(4-tert-butyloxyphenyl)ethenyl)-2,2´–bipyridine) (NCS)2

CAS number:
943720-18-1

Typical properties:
E0 = 0.95 V vs. NHE
λ max = 546 nm (19400 M-1cm-1)
λ em = 800 nm
E0-0 = 1.75 eV
MW = 1207.57 g/mol

References:
Additional information
This product is covered by patents of EPFL, Switzerland. Please contact us or EPFL (http://tto.epfl.ch) for further information.
Select amount for quotation



DN-FR02

B11





Full name:
Ruthenate(2-), [[2,2´-bipyridine]-4,4´-dicarboxylato(2-)-κN1N][4,4´-bis[5´-(hexylthio)[2,2´-bithiophen]-5-yl]-2,2´-bipyridine-κN1N]bis(thiocyanato-κN)-, hydrogen (1:2), (OC-6-32)-

Alternative name:
CYC-B11

CAS number:
1688673-28-0

Typical properties:
E0 = 0.96 V vs. NHE
λ max = 554 nm (24200 M-1cm-1)
MW = 1178.54 g/mol

References:
Select amount for quotation



DN-FR03

N749 Black dye





Full name:
1-Butanaminium, N,N,N-tributyl-, hydrogen (OC-6-32)-[[2,2´:6´,2´´-terpyridine]-4,
4´,4´´-tricarboxylato(3-)-κN1N1´,κN1´´]tris(thiocyanato-κN)ruthenate(4-) (2:2:1)

CAS number:
330548-91-9

Typical properties:
E0 = 0.86 V vs. NHE
λ max = 605 nm (7500 M-1cm-1)
MW = 1124.54 g/mol

References:
Select amount for quotation



DN-FR04

C101





Full name:
Ruthenate(2-), [[2,2´-bipyridine]-4,4´-dicarboxylato(2-)-κN1N1´][4,4´-bis(5-hexyl-2-thienyl)-2,2´-bipyridine-κN1N1´]bis(thiocyanato-κN)-, hydrogen (1:2), (OC-6-32)-

CAS number:
1224601-35-7

Typical properties:
E0 = 0.90 V vs. NHE
λ max = 547 nm (17500 M-1cm-1)
MW = 950.18 g/mol

References:
Select amount for quotation

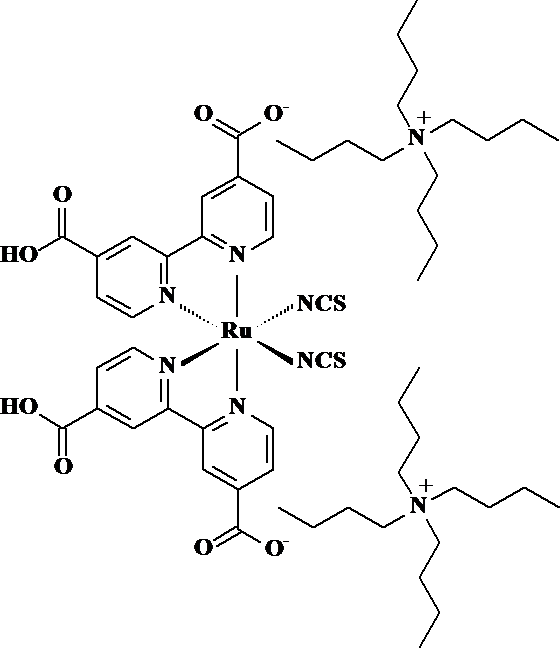

DN-EVF05

N719



DN-EVF05_small
Description:
N719 is a modification of the so-called N3 dye, providing high efficiency and good solubility.

Full name:
cis-Bis(isothiocyanato)bis(2,2'-bipyridyl-4,4'-dicarboxylato) ruthenium(II) bis-tetrabutylammonium

CAS number:
207347-46-4

Typical properties:
λabs.max (DMF) = 522 nm
MW = 1188.60 g/mol

top
Select amount for quotation



DN-EVF06

Z907



Description:
Z907 is a standard hydrophobic dye, offering good efficiency and excellent long-term stability.

Full name:
cis-bis(isothiocyanato)(2,2'-bipyridyl-4,4'-dicarboxylato)(2,2'-bipyridyl-4,4'-di-nonyl)ruthenium(II), sodium hydrogen (1:1:1)

CAS number:
871466-65-8

Typical properties:
λabs.max (DMF) = 516 nm
MW = 892.10 g/mol
top
Select amount for quotation
